HT 273 HPB

A vibrant, 27-inch LED-backlit display with accurate and responsive 10-point-touch Projected Capacitive (PCAP) technology.

7H Hard Glass Protection
10-Point Touch Screen
HDMI & VGA Inputs
VESA 100x100mm Mount
Built-in Stereo Speakers
178° / 178° Viewing Angles
80,000,000:1 Active Contrast
16:9 FHD 1080P Resolution
Description
Specifications
Downloads
Description
Specifications
Downloads

Description

Ideal for Commercial Environments




An excellent choice for commercial applications, interactive digital signage, instore retail, gaming and amusement arcades, POS terminals, interactive kiosks, and presentation purposes.











Projected Capacitive (PCAP) Touch



The HT 248 PPB allows up to 10 simultaneous touches. It's optimized for Windows 8, 8.1, and 10, and compatible with Raspberry Pi3 Model B. A glass overlay ensures that touch performance will be unaffected by everyday use, resistant to dirt, dust, condensation, liquid spills, and cleaning solutions.



Ultra-wide Viewing Angles



The HT 248 PPB features a 16:9 aspect ratio LED-backlit panel with 178° viewing angles that minimize color shift on both horizontal and vertical planes to ensure quality visuals from any direction. It delivers improved colour accuracy and energy efficiency.

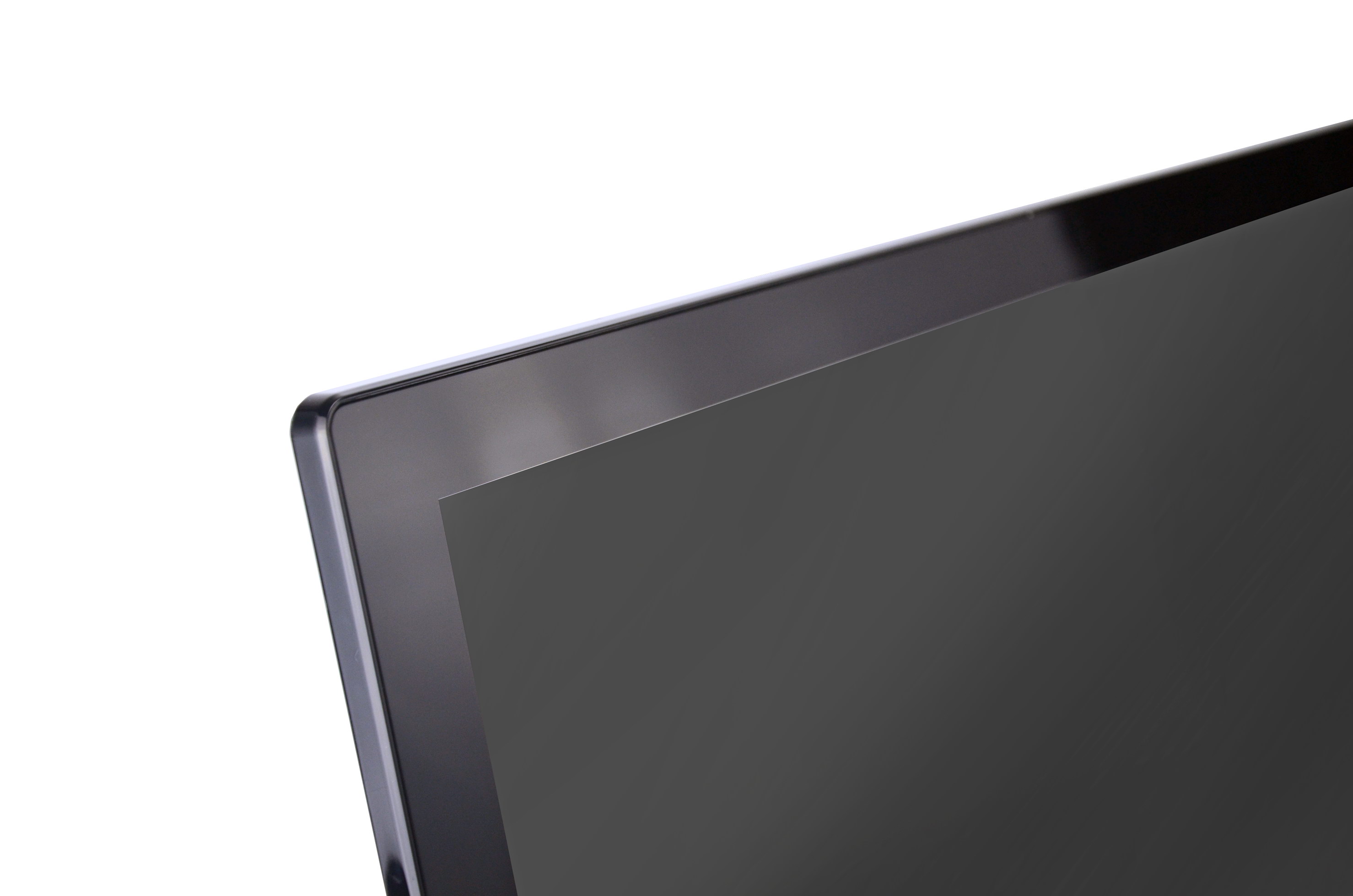

7H Hard Glass Protection



The HT 248 PPB can withstand scratches and impacts. It's certified with a 7H hardness rating, developed specifically for schools, colleges, and universities, but also suitable for retail and industrial applications.



Versatile Connectivity



The HT 248 PPB features a host of connectivity options, including HDMI and D-Sub VGA, which handle multimedia inputs. Touch is simple to setup, too, via the USB upstream port.

























15-70° Tilt Angles



The HT 248 PPB has been specially designed to provide the best angles for viewing and interaction. A sliding-tilt stand allows easy and smooth adjustments between 15° and 70° tilt angles. Its hinged stand also allows the monitor to lie down completely flat for use as a giant tablet.



Speakers & Headphones



The HT 248 PPB has twin built-in stereo speakers that deliver quality audio. There's no need for external speakers. Users can connect an external headset via the 3.5mm headphone jack.







HT Series

Where to buy ?

Are your customers looking for sustainable, eye-friendly display products?




Introduce them to HANNspree ecoVISION™

Get in Touch




Specifications

Title Specifications
Panel Type
TFT – LED Backlight
Aspect Ratio
16:9
Panel Brightness
300cd/m2 (Typical)
Monitor Brightness
258 cd/m2
Contrast (Typical)
1000:1
Contrast (Active)
80.000.000:1
Viewing Angle
178° H / 178° V (CR >10)
Pixel Pitch
0.311 (H) x 0.311 (V) mm
Horizontal Frequency
31 ~ 80 kHz
Vertical Frequency
56 ~ 75 kHz
Max. Display Frequency
1920 x 1080 @ 60Hz
Power Consumption
On: 16.5W; Stand-by: 0.3W; Off: 0.3W
AC Power Range
AC 100 ~ 240 Volt, 50 ~ 60 Hz
Product Dimensions
653.2 x 52.1 x 410.7 mm (W x D x H)
Packaging Dimensions
720 x 144 x 525 mm (W x D x H)
Net / Gross Weight
7.1 / 8.36 Kg
Bezel & Color Plan
Front Bezel, Back Cover, Hinge Cover, IO Cover, TP Cover, Black Texture
VESA Mount
100 x 100 mm
Monitor Stand
Smart Adjustable Stand ("Book" Type)
Tilt / Kensington Lock
15° ~ 55° / Yes
Controls
Menu, Bri (+), Vol (-), Input/Enter, Power
Color
Warm, Nature, Cool, User Mode
Preset Modes
PC, Movie, Game, ECO
On Screen Display
HSD OSD Format 12 Languages: EN, TC, DE, FR, ES, IT, PT, NL, SC, JS, KR, Russian
Accessories
Power Adaptor, Power Cord (1.5M), HDMI Cable (1.5m), Audio Cable (1.8m), USB Cable(1.8m)
