Description

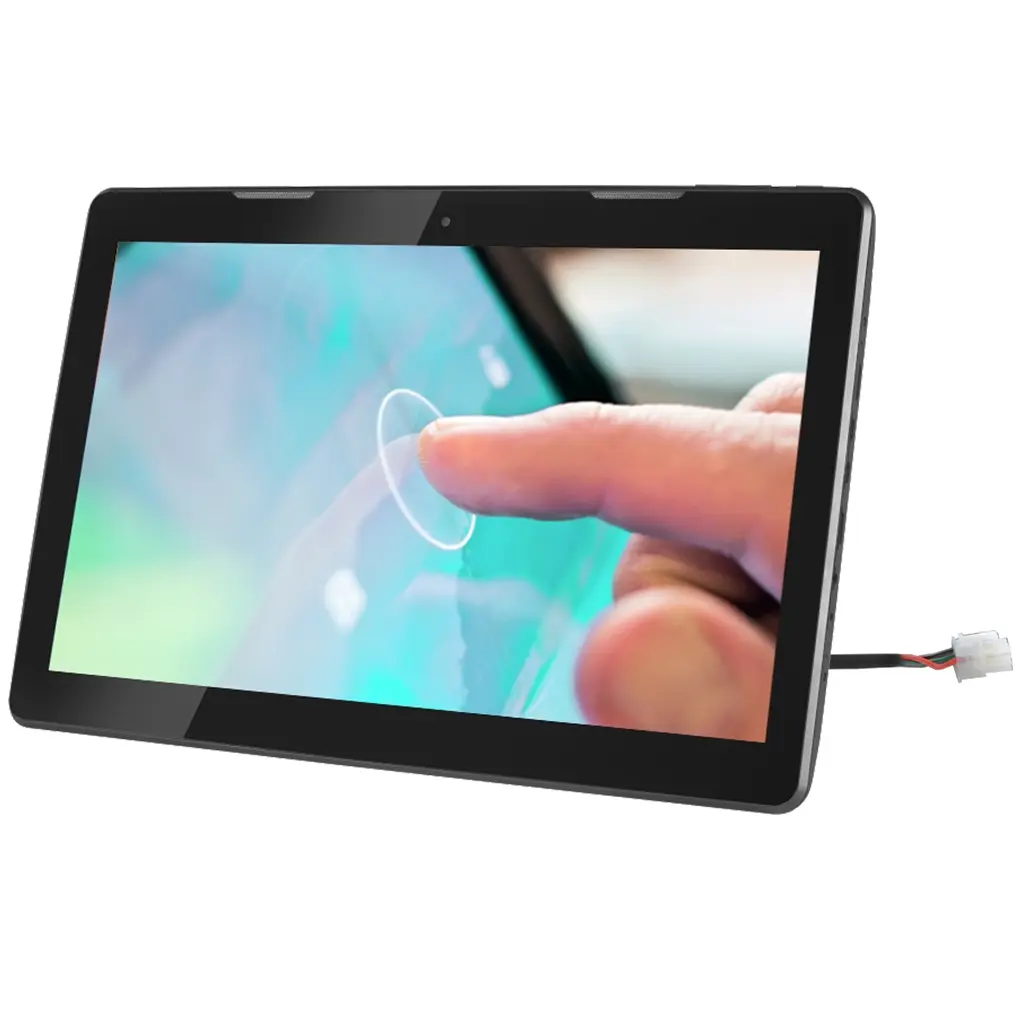

13.3" Integrated Android Touch Display Solutions
Customisable Touch Display Solutions ideal for integration into vending machines/kiosks/stands/totems for info-point purposes. Paired with the convenience of the Android OS, these touchscreen solutions are designed to accommodate proprietary applications used by retail stores, showrooms, tourist venues and public offices. The most effective solutions for all-in-one touch display, with advanced, intuitive touch technology, robust embedded design and an original tailoring service backed by specialist support. Our customized Android Touch Displays can be used for a variety of different environments and it’s the most effective solution for several vertical applications. Customized Android Touch Displays for:
• Digital Advertising Display
• Touch Display for POS
• Touch Digital Signage
• Embedded Screens for Vending Machines, Interactive Kiosks, Industrial Machines... ...and many more possible applications for your Business.
- 13.3” IPS Panel
33,78 cm - Full HD 1920 x 1080
- OctaCore CPU 64 bit, 2GHz
- 2 GB DDR RAM
- Dual Camera 5MP/5MP
- 16 GB Internal Memory
- Dual Band 2.4 + 5 GHz
WLAN 802.11 a/b/g/n+ac USB Type-C
Mini HDMI
Specifications
| Title | Specifications |
|---|---|
|
Part No.
|
80-PL000005G000
|
|
Screen Size
|
33.78 cm / 13.3 Inch
|
|
Resolution (H x V)
|
1920 x 1080 Full HD, 16:9 Aspect Ratio
|
|
Viewing Angle
|
170° (V) / 170° (H) IPS Panel
|
|
Touchscreen Type
|
Multi Point P-Capacitive Touch Panel
|
|
Touch Panel
|
Type: G + G (Glass + Glass)<br />
Total thickness: 1.65mm <br />
(Sensor glass 0.55mm + cover glass 1.1mm)
|
|
Panel Lifetime
|
30K hours LED Backlight
|
|
CPU
|
Octa Core CPU MTK MT8183, 4 core Cortex-a73 up to 2.0GHZ,4 core <br />
Cortex-a53 up to 2.0GHZ
|
|
GPU
|
ARM G72 MP3@800MHz
|
|
Memory
|
2GB RAM
|
|
Storage Internal
|
16GB NAND FLASH
|
|
Storage External
|
Micro SD/Micro SDHC Card (Max 128GB)
|
|
WLAN
|
Wi-Fi IEEE 802.11 a/b/g/n+ac 2.4/5GHz
|
|
Bluetooth
|
5.0 LE (Low Energy)
|
|
Camera
|
Front 5MP w/o AF / Rear 5MP with AutoFocus
|
|
Microphone
|
Built-in
|
|
Speakers
|
Built-in, Stereo Speakers 2 x 1W, 8 ohm
|
|
Headphone Output
|
3.5mm Earphone
|
|
HDMI
|
Mini HDMI, support 1080P (30Hz) / 720P (60Hz)
|
|
USB Type-C
|
Yes, Type-C (OTG)
|
|
USB
|
Micro USB 2.0 (Host)
|
|
GPS / G-Sensor
|
Yes / Yes (4-Directions)
|
|
Battery
|
N/A
|
|
Power Input
|
Power Source: 4.1Volt – 2.5 ~ 3A<br />
External Power Cable (BAT+, BAT-, Power On) from the upper side<br />
Cable Length: Total 650mm ((outside the device it is ≥ 500mm,heat <br />
shrink tube uncovered 40mm from the connector)<br />
Cable Weight: AWG18 for BAT+ and BAT-; AWG24 for Power On<br />
Plug: MOLEX MINIFIT JR. 39-01-2065
|
|
Operating Temperature
|
0 ~ 45° Celsius
|
|
Operating Humidity
|
10 ~ 85%
|
|
Case Material
|
Metal + Plastic (PC + ABS)
|
|
Product Dimensions
|
336,1 x 219,2 x 11,8 mm (W x H x D)
|
|
Net Weight
|
0,85 Kg
|
|
Control Keys
|
Power, Volume +/-, Reset
|
|
Operating System
|
Android 10 (Android Q) (w/o GMS – Google Play)
|
|
UI Language
|
Android default
|
|
Packaging
|
Industrial packaging
|
|
EAN Code
|
4711404024177
|
