Description

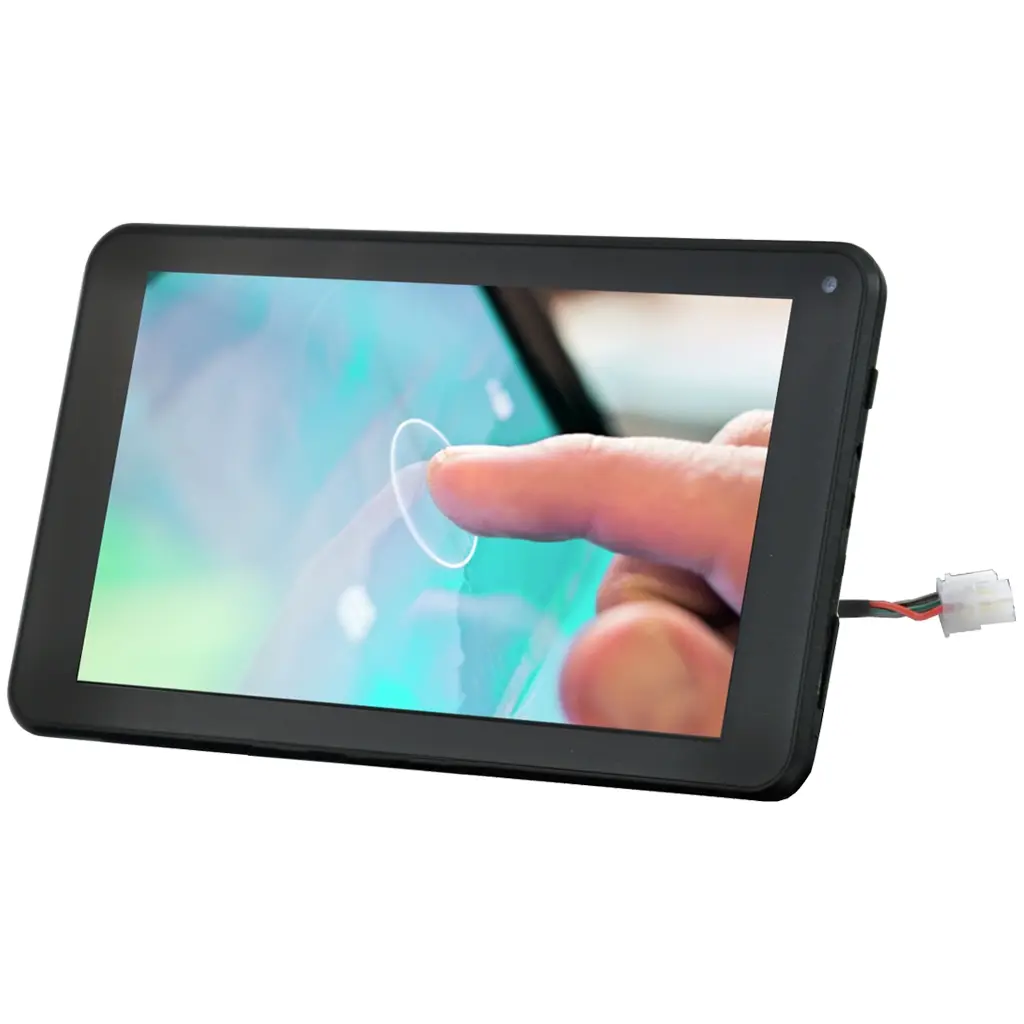

7" Integrated Android Touch Display Solutions
Customisable Touch Display Solutions ideal for integration into vending machines/kiosks/stands/totems for info-point purposes. Paired with the convenience of the Android OS, these touchscreen solutions are designed to accommodate proprietary applications used by retail stores, showrooms, tourist venues and public offices. The most effective solutions for all-in-one touch display, with advanced, intuitive touch technology, robust embedded design and an original tailoring service backed by specialist support. Our customized Android Touch Displays can be used for a variety of different environments and it’s the most effective solution for several vertical applications. Customized Android Touch Displays for:
• Digital Advertising Display
• Touch Display for POS
• Touch Digital Signage
• Embedded Screens for Vending Machines, Interactive Kiosks, Industrial Machines... ...and many more possible applications for your Business.
- 7" LED Backlight Panel
- 1024 x 600 Resolution
- CPU Quad Core MT8163 1.3 GHz
- 1GB DDR3 RAM Memory
- 16GB Internal Storage
- Wi-Fi IEEE 802.11 b/g/n 2.4GHz
- P-Cap Multi-Touch Display
Touch Type G + G - 30K Hours Panel Backlight Lifetime
- OS Android 8.1
- Power Source: DC 3.7V ~ 1.5A
- Plug: MOLEX MINIFIT JR. 39-01-2065
Where to buy ?
Are your customers looking for sustainable, eye-friendly display products?
Introduce them to HANNspree ecoVISION™
Specifications
| Title | Specifications |
|---|---|
|
Name / Part No.
|
80-PL000001G004
|
|
Screen Size
|
17,78 cm / 7 Inch
|
|
Resolution (H x V)
|
1024 x 600, 16:9 Aspect Ratio, IPS Panel *
|
|
Viewing Angle
|
160° (V) / 160° (H)
|
|
Touchscreen Type
|
Multi Point P-Capacitive Touch Panel
|
|
Touch Panel
|
G + G (Glass + Glass)
|
|
Lamp Panel Lifetime
|
30K hours LED Backlight
|
|
CPU
|
MT8163V/B, ARM Cortex-A53 Quad Core @ 1.3 GHz
|
|
GPU
|
ARM Mali-T720 MP2 @520MHz
|
|
Memory
|
1GB RAM
|
|
Storage Internal
|
16GB NAND FLASH
|
|
Storage External
|
Micro-SD/Micro-SDHC Card, max. 32GB
|
|
WLAN
|
Wi-Fi IEEE 802.11 b/g/n (2.4 Ghz Single Band)
|
|
Bluetooth
|
Bluetooth 4.1 (LE)
|
|
Camera
|
Front 0.3MP / Rear 2MP
|
|
Microphone
|
Built-in
|
|
Speakers
|
Built-in, Stereo Speakers 1 x 0.8W, 8 Ω
|
|
Headphone Output
|
3.5mm Earphone
|
|
HDMI
|
N/A
|
|
USB
|
Micro USB
|
|
GPS
|
N/A
|
|
G-Sensor
|
Yes
|
|
Battery
|
Not Mounted
|
|
Power Input
|
Power Source: DC 3.7Volt – 1.5A<br />
External Power Cable (BAT+, BAT-, Power On) from the opposite <br />
side of Control Buttons. <br />
Cable Length: Total 650mm (outside the device it is ≥ 500mm, heat <br />
shrink tube uncovered 40mm from the connector)<br />
Cable Weight: AWG18 for BAT+ and BAT-; AWG24 for Power On<br />
Plug: MOLEX MINIFIT JR. 39-01-2065
|
|
Operating Temperature
|
0 ~ 45° Celsius
|
|
Operating Humidity
|
10 ~ 85%
|
|
Case Material
|
Plastic with rubber painting
|
|
Product Dimensions
|
191,7 x 109,7 x 10,6 (W x H x D mm)
|
|
Net Weight
|
234 grams
|
|
Control Keys
|
Power, Vol+, Vol-, Reset
|
|
Operating System
|
Android 8.1 (w/o GMS – Google Play)
|
|
UI Language
|
Android default
|
|
Packaging
|
Industrial packaging
|
