Description

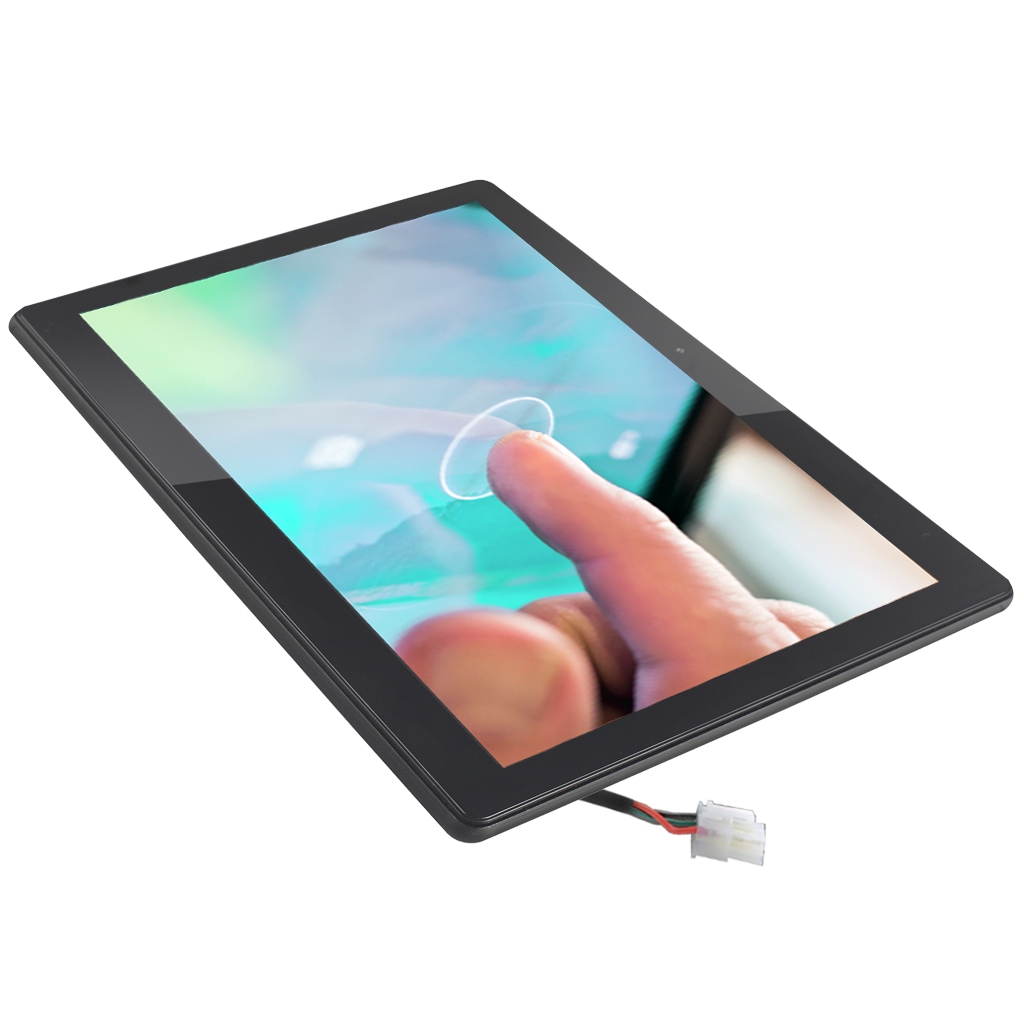

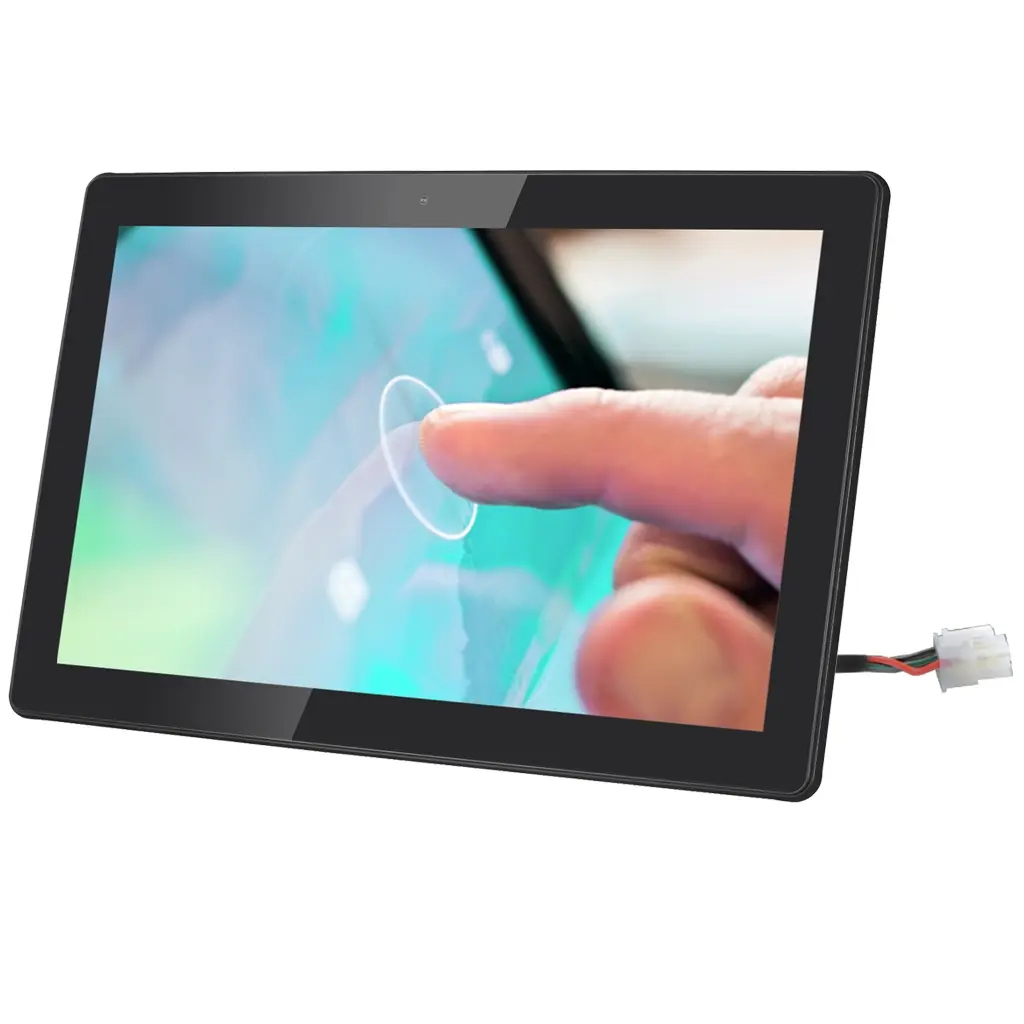

10.1" Integrated Android Touch Display Solutions
Customisable Touch Display Solutions ideal for integration into vending machines/kiosks/stands/totems for info-point purposes. Paired with the convenience of the Android OS, these touchscreen solutions are designed to accommodate proprietary applications used by retail stores, showrooms, tourist venues and public offices. The most effective solutions for all-in-one touch display, with advanced, intuitive touch technology, robust embedded design and an original tailoring service backed by specialist support. Customized Android Touch Displays for: Digital Advertising Display, Touch Display for POS, Touch Digital Signage, Embedded Screens for Vending Machines, Interactive Kiosks, Industrial Machines and many more possible applications for your Business.
- CPU Quad Core MTK8168 64 bit, up to 2GHz
- 3 GB RAM
- 32GB Internal Storage
- OS Android 13
- P-Cap Multi-Touch Display
- Touch Type G + G
- Wi-Fi IEEE 802.11 a/b/g/n+ac 2.4/5GHz
- Power Source: DC 4.2Volt – 2A
- Plug: MOLEX MINIFIT JR. 39-01-2065
Where to buy ?
Are your customers looking for sustainable, eye-friendly display products?
Introduce them to HANNspree ecoVISION™
Specifications
| Title | Specifications |
|---|---|
|
Name / Part No.
|
80-PL000004G001
|
|
Screen Size
|
25.65 cm / 10.1 Inch
|
|
Resolution (H x V)
|
1280 x 800, 16:10 Aspect Ratio
|
|
Touchscreen Type
|
Multi Point Capacitive Touch Panel
|
|
Touch Panel
|
Type: G + G (Glass + Glass) 2.5D*
|
|
Display Protection
|
Thickness 2,175 ± 0.1mm (with 0.175mm tape), Hardness: 6H <br />
Toughened hard panel surface
|
|
CPU
|
Quad Core CPU MTK8168 Cortex ARM A53 64 bit, up to 2.0 GHz
|
|
GPU
|
Mali-G52
|
|
Memory
|
3GB RAM DDR4
|
|
Storage Internal
|
32GB eMMC
|
|
Storage External
|
Micro SD/Micro-SDHC Card, Max. 128GB
|
|
WLAN
|
Wi-Fi IEEE 802.11 a/b/g/n+ac 2.4/5GHz
|
|
Bluetooth
|
5.0
|
|
Camera
|
Front: 2.0MP without AF / Rear: N/A
|
|
Microphone
|
Built-in
|
|
Speakers
|
Built-in, Stereo Speakers 2 x 1W
|
|
Headphone Output
|
3.5mm Earphone
|
|
HDMI
|
N/A
|
|
USB
|
USB-C 2.0
|
|
GPS
|
Yes
|
|
G-Sensor
|
Yes (4-directions)
|
|
OTG
|
Yes
|
|
Battery Type
|
N/A
|
|
Power Input
|
Power Source: DC 4.2Volt – 2A<br />
External Power Cable (BAT+, BAT-, Power On) from the opposite <br />
side of I/O ports<br />
Cable Length: Total 650mm (outside the device it is ≥ 500mm, heat <br />
shrink tube uncovered 40mm from the connector)<br />
Cable Weight: AWG20 for BAT+ and BAT-; AWG24 for Power On<br />
Plug: MOLEX MINIFIT JR. 39-01-2065
|
|
Operating Temperature
|
0 ~ 45° Celsius
|
|
Operating Humidity
|
10 ~ 85%
|
|
Case Material
|
Plastic with rubber painting
|
|
Product Dimensions
|
250,36 x 164,4 x 10,15 (W x H x D mm)
|
|
Control Keys
|
Power button, Volume +/-, Reset
|
|
Operating System
|
Android 13 (w/o GMS – Google Play)
|
|
UI Language
|
Android default
|
|
Panel Lifetime
|
30K hours LED Backlight
|
|
Packaging
|
Industrial Packaging
|
|
NFC Function
|
N/A
|
